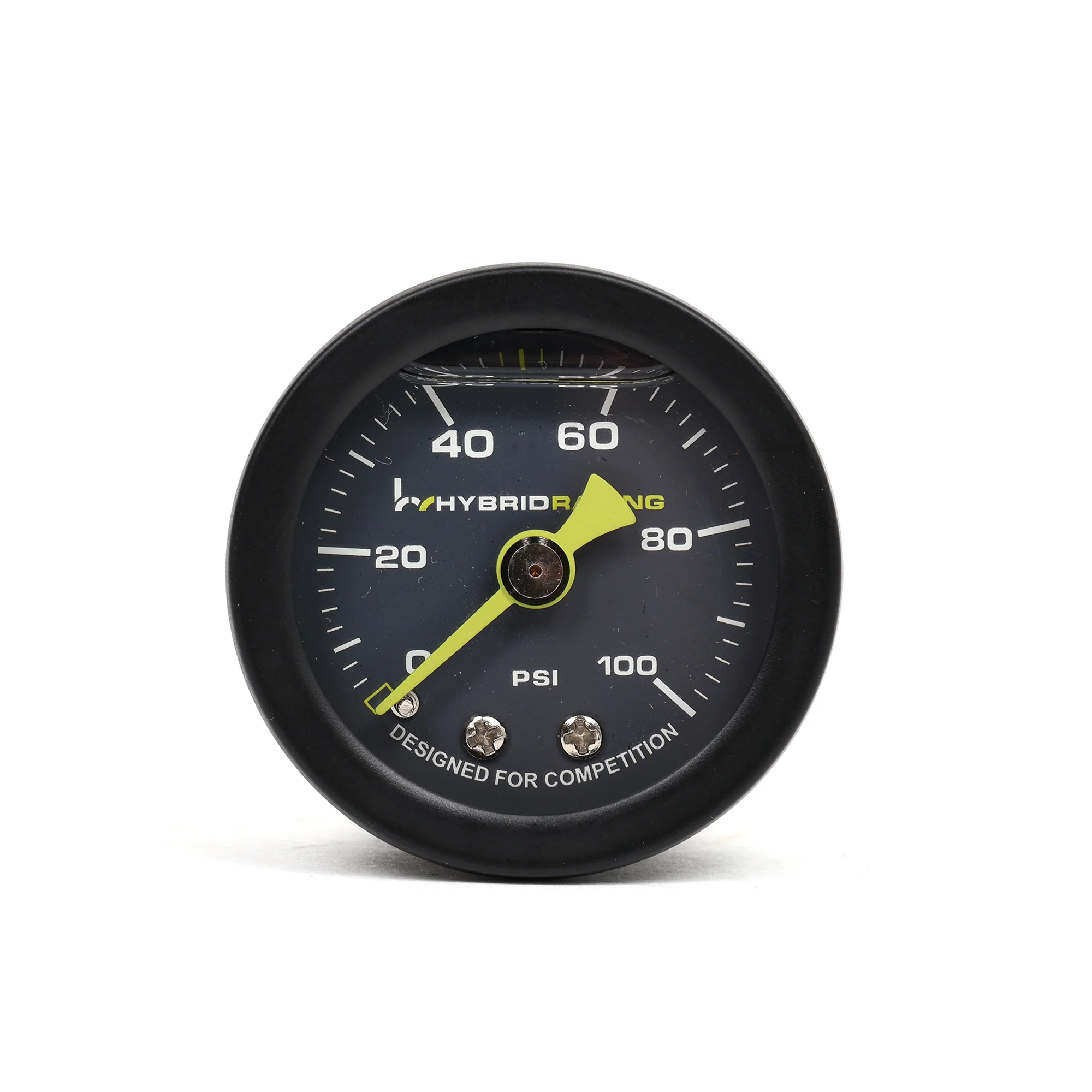

Hybrid Racing Universal Fuel Pressure Gauge

Hybrid Racing Universal Fuel Pressure Gauge

Know exactly what your fuel system is doing, at a glance. The Hybrid Racing Universal Fuel Pressure Gauge puts lab-grade accuracy in a track-ready package so you can dial in your EFI setup with confidence.

Why you’ll love it

• True 0-100 psi range – Ideal for factory or high-flow aftermarket pumps, regulators, and injectors.
• Crystal-clear visibility – Satin-black steel housing, low-glare gray face, and signature Hybrid Racing green pointer make readings easy in any light.
• Built to survive – All-steel case, liquid-isolated internals, and vibration-resistant construction maintain calibration run after run.
• Universal versatility – Threads directly into most fuel pressure regulators, rails, or inline adapters, giving accurate data on virtually any Honda, Acura, or custom build.
• Proudly made in the USA – Precision-machined, individually tested, and ready for street, strip, or circuit abuse.

The result: rock-solid data that lets you spot problems before they become expensive failures, refine fuel trims, and squeeze every last horsepower from your tune.

Technical quick hits

• Measurement range: 0–100 psi (0–7 bar)
• Case material/finish: Steel, satin black powder coat
• Dial diameter: 1.5 in (38 mm)
• Port size: 1/8" NPT male (fits standard regulator and rail ports)
• Dampening: Liquid-filled for steady needle movement

Installation Snapshot

Beginner | 5 minutes | Gauge w/ pre-installed 1/8" NPT fitting included
