Radium Engineering Fuel Pump Hanger for 93-97 Del Sol

Radium Engineering Fuel Pump Hanger - 1993-1997 Honda Del Sol

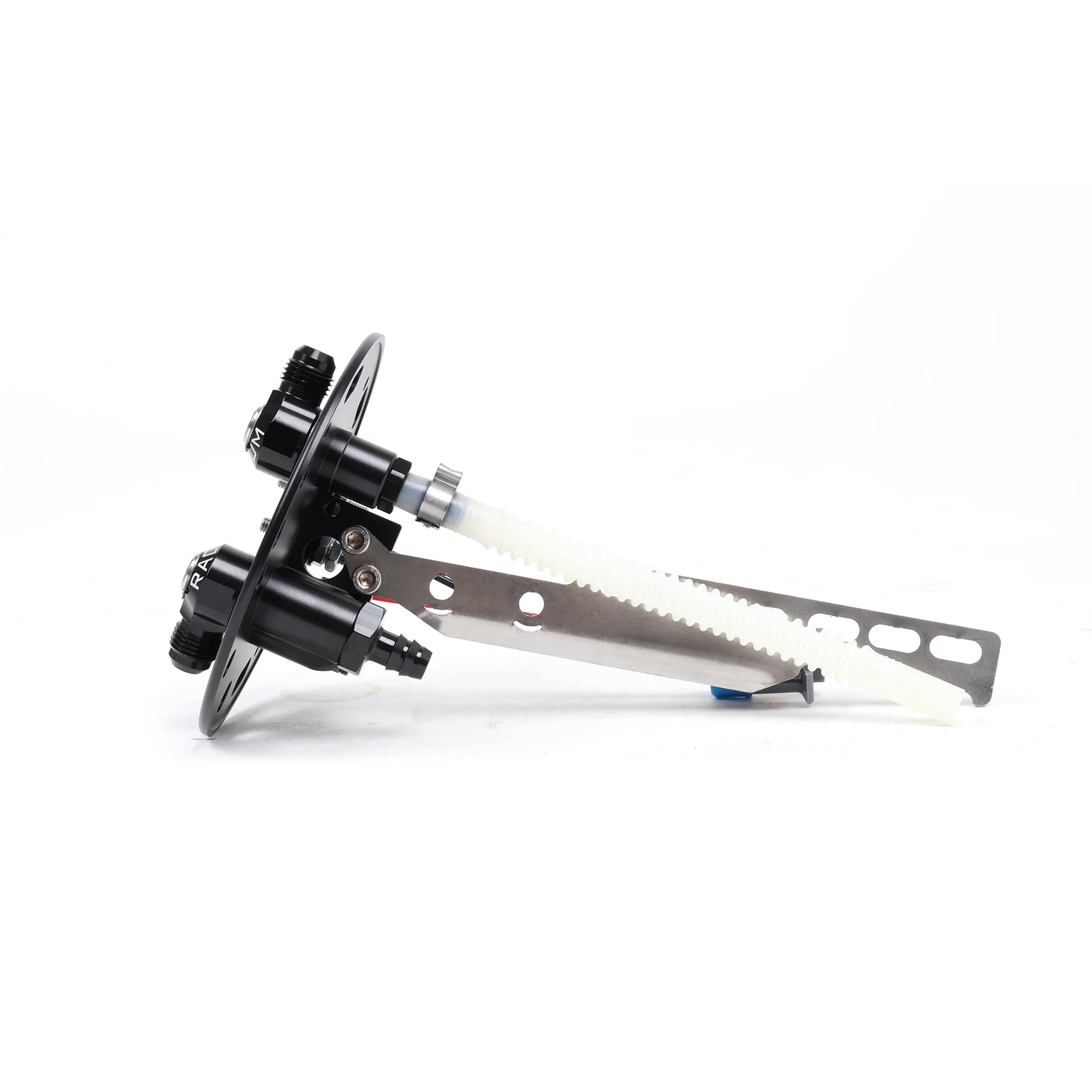

You're building your Del Sol and you need to replace the stock fuel pump assembly with something that can handle more power or E85. The stock hanger's plastic and it's designed for a single low-flow pump. Radium Engineering makes this billet aluminum hanger to replace the entire stock assembly. It drops right in. No cutting the fuel tank. No modifying sheet metal. You're pulling the stock hanger out and bolting this one in. The fuel pump sits in the factory collector bowl so you're not getting fuel starvation when you're hard on the throttle or low on gas. The hanger's got an 8AN ORB port for the fuel feed and a 6AN ORB port for the return. You're running aftermarket braided fuel lines instead of trying to adapt stock hard lines. Radium makes two versions of this hanger. One fits Walbro GSS342 and AEM pumps. The other fits Walbro 450 LPH pumps and brushless pumps. Pick the one that matches your fuel pump.

Here's Why You're Replacing the Stock Hanger

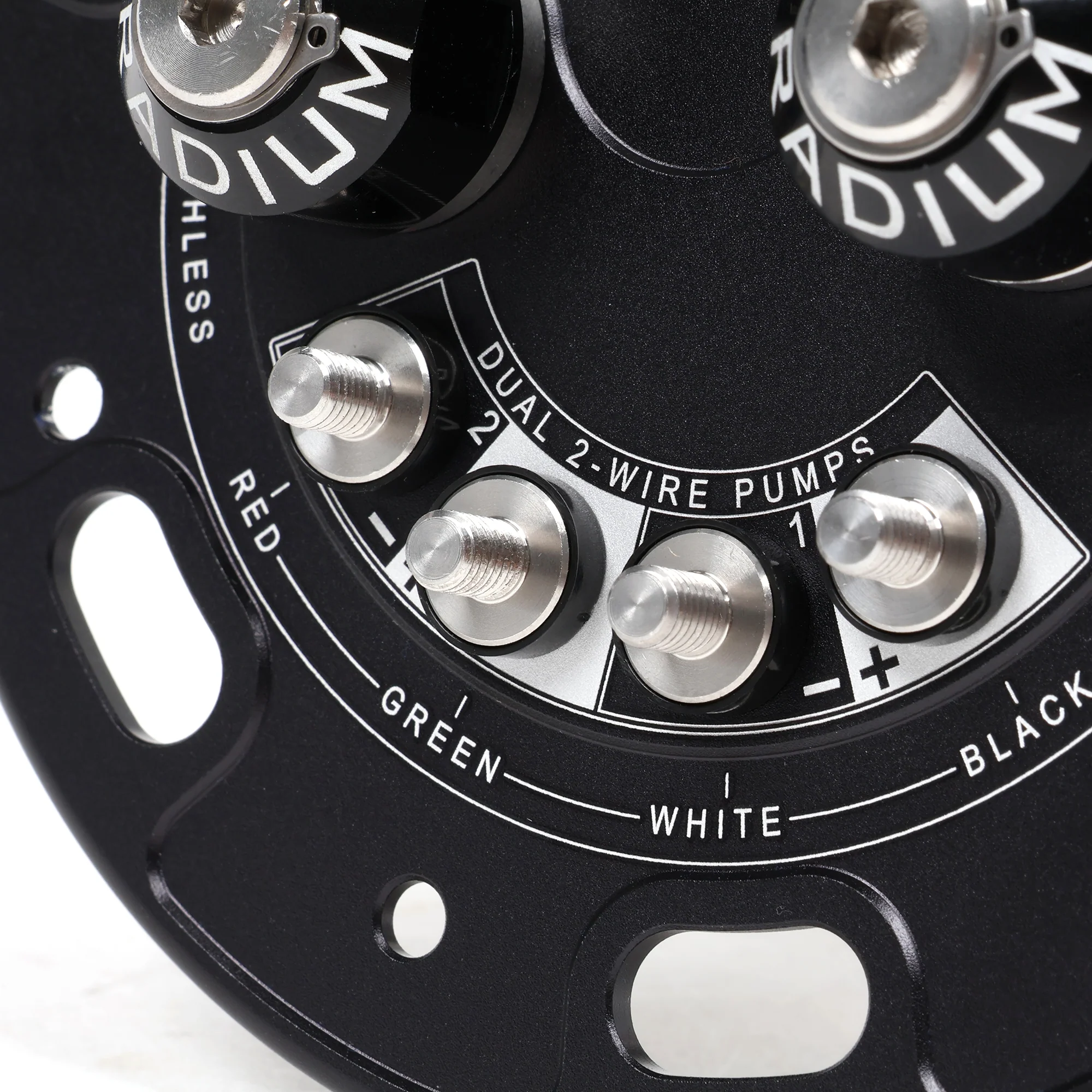

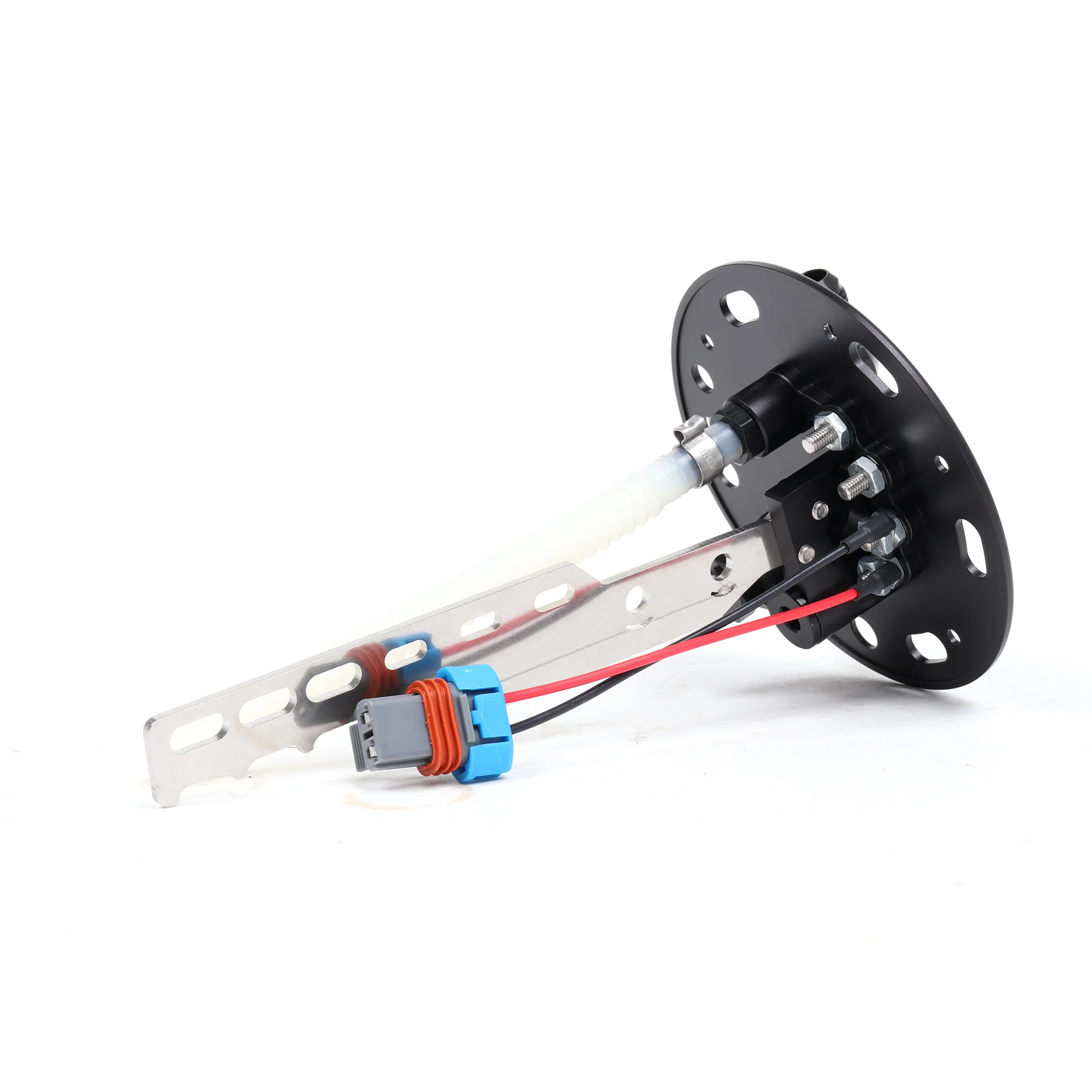

The stock Del Sol fuel hanger's plastic and it's designed for a stock fuel pump flowing 100-120 LPH. That's fine for a stock car making 130 hp. It's not fine when you're turbocharged or running E85 or making 300+ whp. You need a bigger pump and the stock hanger won't hold a Walbro 450 or an AEM high-flow pump. The stock electrical connections are also weak. They're plastic multi-pin connectors that can't handle the current draw from a high-flow fuel pump. The plastic gets brittle over time and cracks. Radium's hanger is billet aluminum. The electrical connections are stainless steel studs that can handle high current without melting or corroding. The studs are anti-rotation so they don't spin when you're tightening the nuts. The in-tank wiring's insulated with ETFE which is chemically resistant to gasoline, E85, and methanol. The connections are hermetically sealed so you're not getting fuel leaking into the electrical connections.

8AN Feed Port and 6AN Return Port

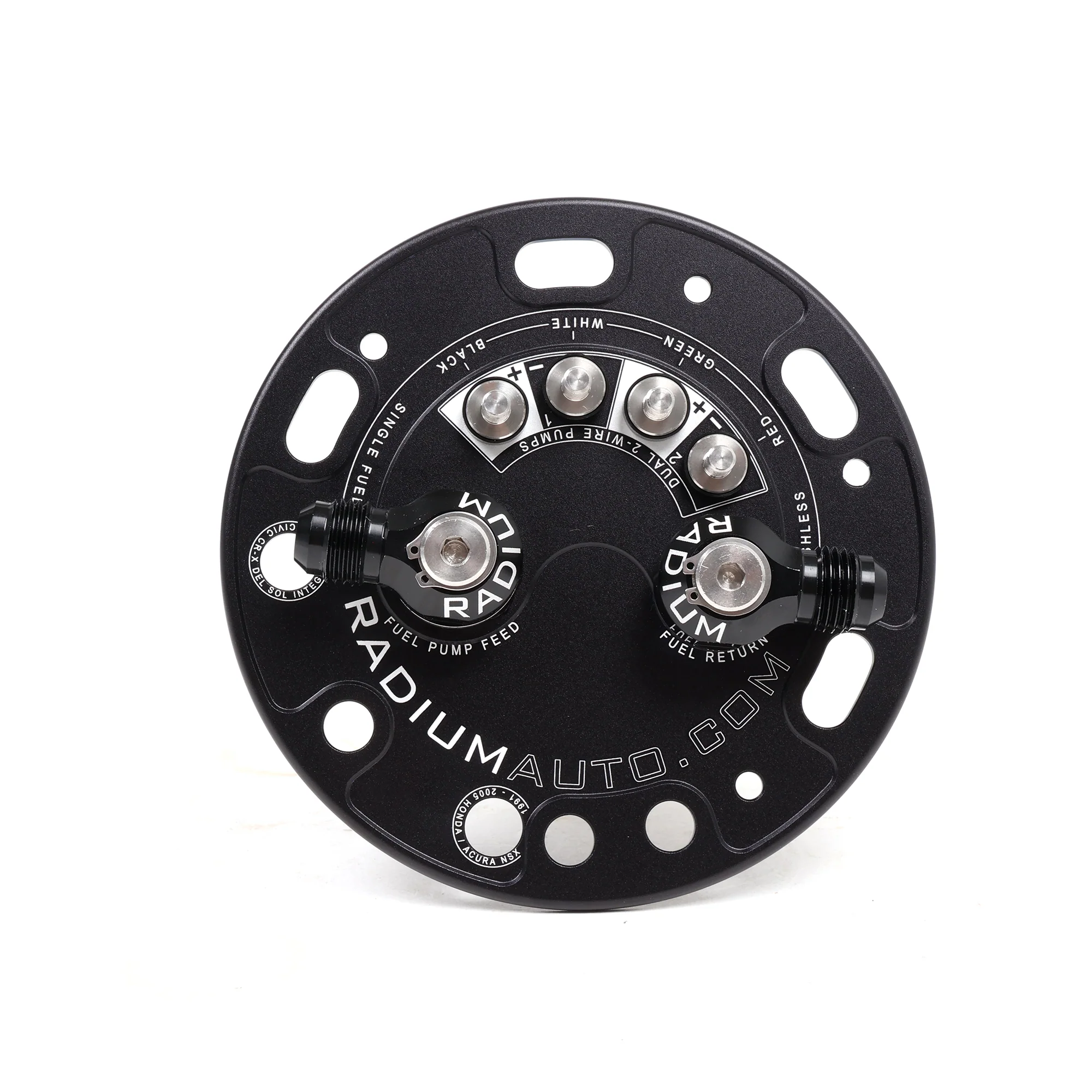

The fuel feed port's tapped 8AN ORB on the top plate. That's a 3/4"-16 female thread with an O-ring groove. Radium includes a 6AN male fitting pre-installed so you can run 6AN braided fuel line from the hanger to your fuel rail. If you're running a return-style fuel system, the return port's tapped 6AN ORB (9/16"-18 female) and Radium includes a 6AN male fitting for your return line. If you need different fittings (8AN to 8AN adapters, direct-mount regulators, fuel filters), Radium sells those separately. The fittings are machined low enough to clear the fuel pump access cover so you're not grinding clearance into your trunk floor. You can remove the access cover to service the pump without pulling the fuel tank.

Two Versions - Pick the One That Fits Your Pump

Radium makes this hanger in two versions. Version 1 (part number 20-1790) fits Walbro GSS342 (255 LPH) and AEM 50-1000, 50-1200, 50-1220, 50-1230, and 50-1235 pumps. The GSS342's a common upgrade for naturally aspirated builds or mild turbo setups. If you're running a GSS342, you can reuse your stock fuel pump wiring but Radium recommends upgrading it so the pump's getting full voltage. Sock filters are included for the Walbro pump. AEM pumps come with their own sock filters. Note that the AEM 50-1230 and 50-1235 don't have check valves built in so you'll need to add one if you're running a return-style system. Version 2 (part number 20-1792) fits Walbro F90000267, F90000274, F90000285, F90000295, Ti Automotive E5LM brushless, Protec 11928 brushless, Fuelab 49614 brushless, Deatschwerks DW440 brushless, and Deatschwerks DW810 brushless pumps. These are higher-flow pumps for turbo builds or high-horsepower setups. Sock filters are included for the Walbro pumps. Brushless pumps come with their own sock filters. Note that the Walbro F90000295 and Ti Automotive E5LM don't have check valves. If you're running a brushless pump, you'll need to route the extra controller wires through the hanger.

Can Run Dual Pumps with Add-On Kit

If you need dual pumps for a high-horsepower build, Radium sells a dual pump add-on that bolts to this hanger. The add-on holds a second pump. You're running two pumps in parallel for more fuel flow. If you're running brushless pumps, you can't use the dual pump add-on because the brushless controller wires won't fit through the hanger with a second pump installed. Stick with a single high-flow brushless pump or run two conventional pumps with the dual add-on.

What You Get

• Radium Engineering fuel pump hanger for 1993-1997 Del Sol (select Version 1 or Version 2 based on pump)
• Billet aluminum construction (anodized for corrosion resistance)
• 8AN ORB female fuel feed port (3/4"-16 thread, pre-installed 6AN male fitting included)
• 6AN ORB female return port (9/16"-18 thread, 6AN male fitting included)
• Stainless steel anti-rotation electrical studs (high current rated, hermetically sealed)
• ETFE insulated in-tank wiring (chemically resistant to gasoline, E85, methanol)
• Non-conductive anodized aluminum acorn nuts (prevents short circuits)
• Stainless steel hardware and clamps
• Sock filter included (for Walbro pumps - AEM and brushless pumps come with their own)
• Drop-in installation (no cutting fuel tank or sheet metal)
• Positions pump in factory collector bowl (fuel starvation protection)
• Compatible with gasoline, E85, and methanol

Version 1 (20-1790) Compatible Pumps

• Walbro GSS342 (255 LPH) - sock filter included
• AEM 50-1000 - comes with sock filter
• AEM 50-1200 - comes with sock filter
• AEM 50-1220 - comes with sock filter
• AEM 50-1230 - comes with sock filter (no check valve)
• AEM 50-1235 - comes with sock filter (no check valve)

Version 2 (20-1792) Compatible Pumps

• Walbro F90000267 (450 LPH) - sock filter included
• Walbro F90000274 (450 LPH High Pressure) - sock filter included
• Walbro F90000285 (450 LPH) - sock filter included
• Walbro F90000295 (525 LPH) - sock filter included (no check valve)
• Ti Automotive E5LM brushless - comes with sock filter (no check valve)
• Protec 11928 brushless - comes with sock filter
• Fuelab 49614 brushless - comes with sock filter
• Deatschwerks DW440 brushless - comes with sock filter
• Deatschwerks DW810 brushless - comes with sock filter

Fits This Car

• 1993-1997 Honda Del Sol (all trims)

Note: Two versions available - Version 1 (20-1790) for Walbro GSS342 and AEM pumps, Version 2 (20-1792) for Walbro 450/525 LPH and brushless pumps. Pick version based on your fuel pump. Drop-in installation - no cutting fuel tank or modifying sheet metal. Fittings machined low enough to clear fuel pump access cover for easy service. Stock Walbro GSS342 installations can reuse OEM wiring but Radium recommends upgrading wiring to ensure full voltage to pump. Dual pump add-on available separately if you need two pumps for high-horsepower builds - dual add-on does NOT work with brushless pumps (controller wires won't fit with second pump). Some pumps don't have built-in check valves (AEM 50-1230/50-1235, Walbro F90000295, Ti Automotive E5LM) - add external check valve if running return-style fuel system. 8AN ORB feed port comes with pre-installed 6AN male fitting, 6AN ORB return port comes with 6AN male fitting - other fittings available separately. Stainless steel electrical studs handle high current and are hermetically sealed (won't corrode or leak fuel into electrical connections). ETFE insulated in-tank wiring is chemically resistant to gasoline, E85, and methanol. Non-conductive acorn nuts prevent accidental short circuits. Fuel pump sits in factory collector bowl for fuel starvation protection.
