Acura 02-06 RSX Battery Ground Cable Assembly 32600-S6M-A00

Acura RSX Battery Ground Cable Assembly - 32600-S6M-A00

Your RSX is 20+ years old now and some electrical gremlins are starting to show up? The battery ground cable's one of the first things to go bad on aging Hondas. The Acura RSX battery ground cable assembly (part number 32600-S6M-A00) is the complete ground cable that connects your battery's negative terminal to your chassis and engine block. After sitting in your engine bay for two decades getting cooked and corroded, the cable doesn't conduct electricity properly anymore or the terminal clasp is deformed from repeated removal and reinstallations. You'll get slow cranking, dimming lights, or your car won't start at all even though your battery's good. Replace your battery ground cable if it's corroded, the insulation's cracked, or you're chasing electrical problems that don't make sense.

Here's What Happens When Your Ground Cable Goes Bad

Your battery ground cable carries all the return current from your electrical system back to your battery. When the cable gets corroded at the connections or the copper strands inside break down from age, the resistance goes up. High resistance means your electrical system can't flow enough current. Your starter cranks slowly or it just clicks because it's not getting enough juice. Your headlights dim when you're cranking the engine. Your gauge cluster acts weird or your radio cuts out. All these problems can come from a bad ground cable even though your battery and alternator are fine. A corroded ground cable looks fine on the outside but the copper inside is green and falling apart.

Complete Assembly with Terminal and Hardware

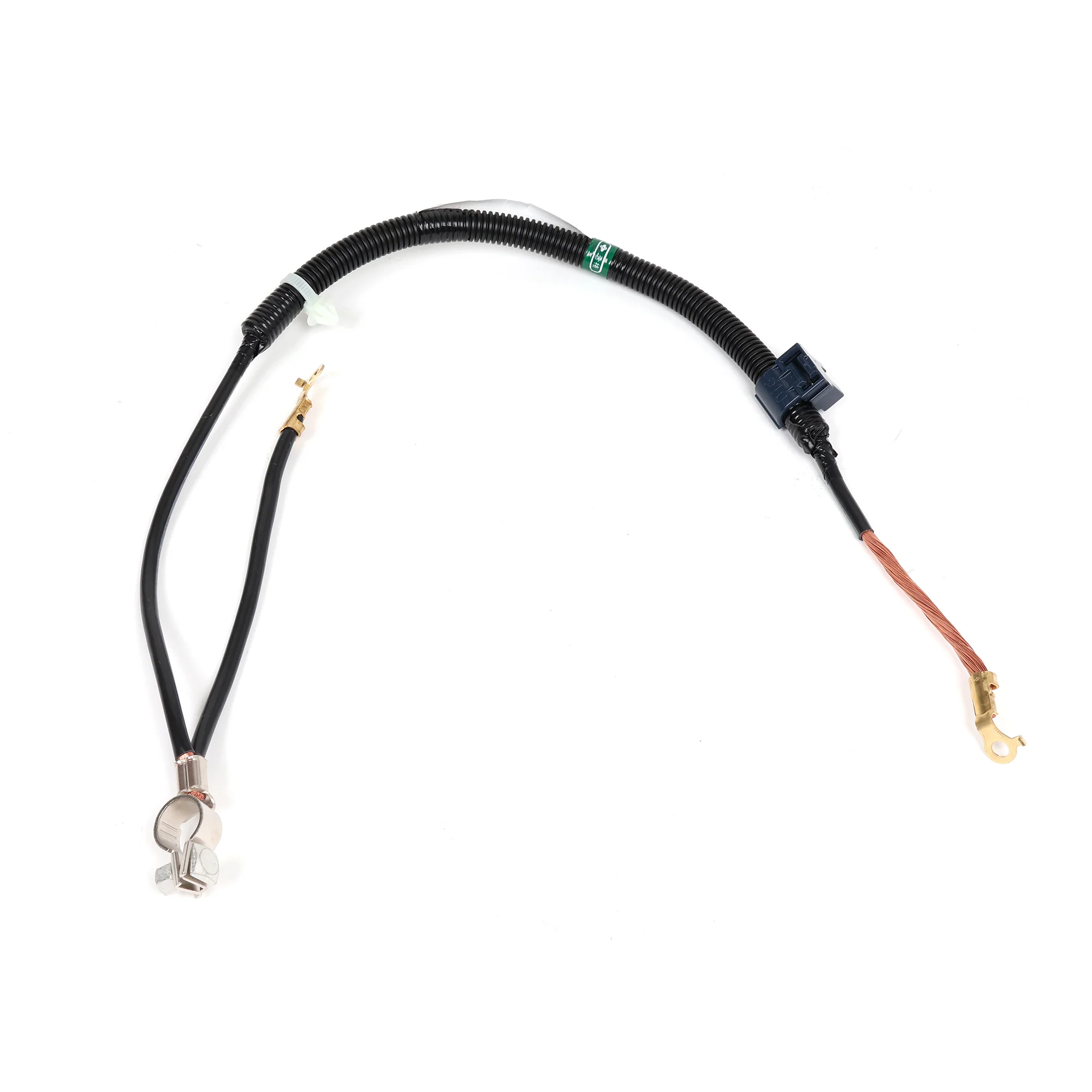

This is the complete battery ground cable assembly. You're getting the negative battery terminal clamp, two ground wires (one to the chassis, one to the engine block), the cable stay that holds the wires in place, and the cable stay zip tie. Everything's assembled and ready to install. You're not buying separate pieces or trying to crimp your own terminals. Just unbolt your old ground cable, bolt this one on, and you're done.

Factory Ground Points Are Correct

The ground wires on this cable connect to the factory ground points on your chassis and engine block. The cable lengths are correct and the terminal ends fit the factory mounting points. You're not running custom ground wires or trying to find new ground points. It bolts to the same spots your factory cable bolted to.

What You Get

• Acura RSX battery ground cable assembly
• Part number: 32600-S6M-A00
• Genuine Acura OEM replacement
• Negative battery terminal clamp
• 2 ground wires (chassis ground and engine block ground)
• Cable stay and cable stay zip tie
• Complete assembly ready to install

Fits Your Car

• 2002-2006 Acura RSX Base
• 2002-2006 Acura RSX Type S

Compatible Engines

• K20A3 (2002-2006 RSX Base)
• K20A2, K20Z1 (2002-2006 RSX Type S)

Note: When you're installing the new ground cable, clean the ground points on your chassis and engine block with a wire brush. If the ground points are rusty or painted over, the cable won't conduct properly and you'll still have electrical problems. Make sure the ground wires are making good metal-to-metal contact at the mounting points. Tighten the battery terminal clamp until it's snug but don't crank it down so hard that you crack the battery terminal. If your battery terminals are corroded, clean them with a wire brush and some baking soda before you install the new cable. Corroded terminals will cause the same problems as a bad ground cable.
