If you're sealing a B-series oil pan, the genuine Honda OEM gasket (part #11251-P30-004) is the only replacement that matches the exact flange geometry, material durometer, and compression tolerance Honda engineered into your engine. Aftermarket alternatives cut corners on material spec - that's why you see oil seepage come back within a season on a lot of B-series builds that used a cheaper gasket the first time around.

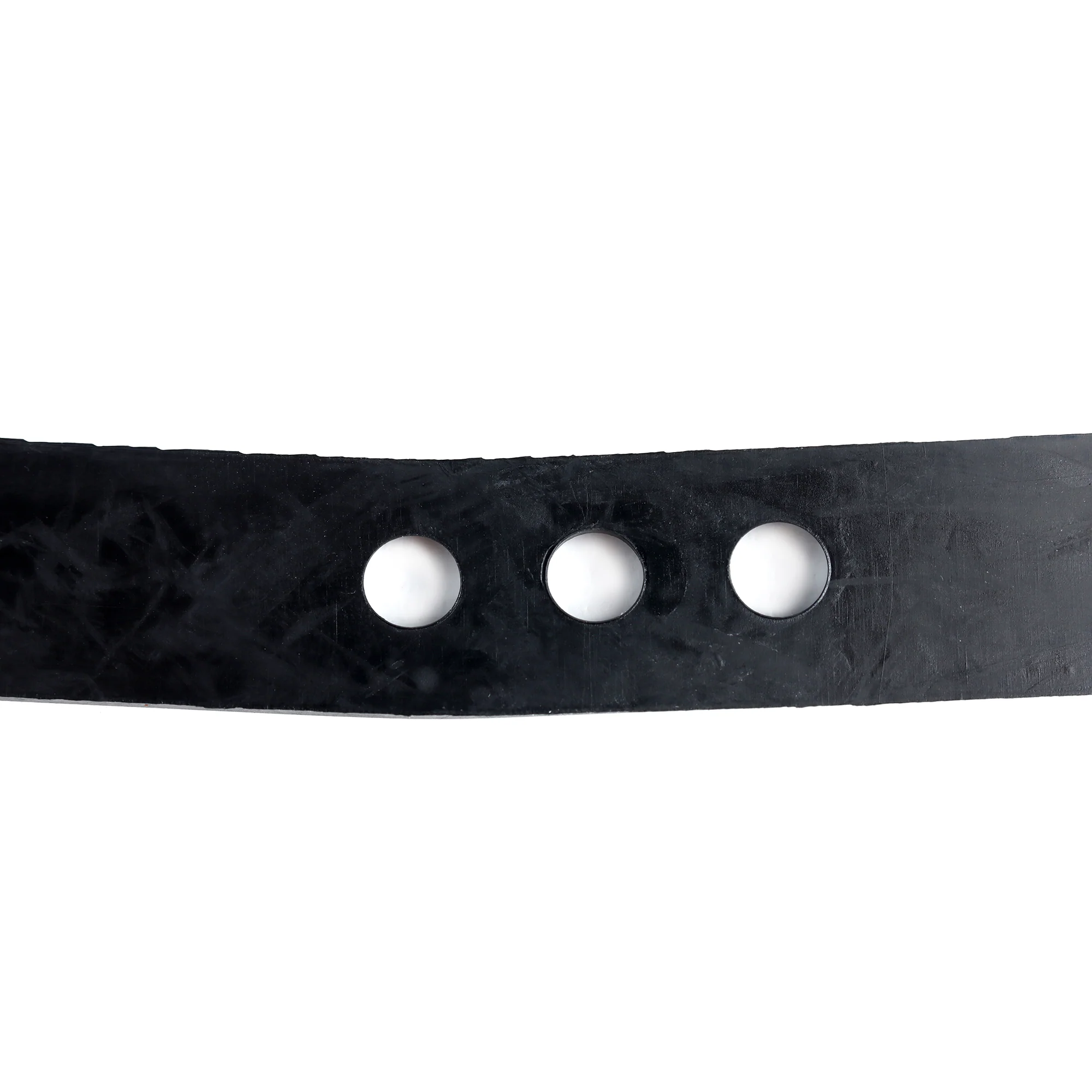

This is a direct OEM replacement, not a rebranded aftermarket part. The rubber-coated steel construction holds its seal under the heat cycling a B-series sees in both daily-driver and track use. It compresses evenly across the full perimeter of the oil pan flange, which is the part that cheap gaskets consistently get wrong.
Compatible B-Series Engine Codes: B16A, B16A2, B16B, B18B1, B18C, B18C1, B18C5, B20B, B20Z
Installation Notes: No gasket maker or RTV sealant is required with this OEM gasket - Honda designed it to seal dry. Torque oil pan bolts to Honda spec (typically 8-12 Nm / 6-9 ft-lb depending on engine variant - always verify with your service manual). The job runs 30-45 minutes with a standard socket set and a drain pan. Clean the mating surfaces thoroughly before install.
This gasket fits a wide range of Honda and Acura chassis from 1988 through 2001. See the full fitment list below before ordering. If you're pulling the oil pan for a rebuild, rod bearing service, or oil pump replacement, this is the correct OEM gasket to have on the bench before you button it back up.
-
Compatible Vehicles (B-Series Engine Applications):
- 1990-2001 Acura Integra (RS, LS, GS, GS-R, Type R) - B18B1, B18C1, B18C5
- 1994-1997 Honda Civic Del Sol VTEC (SiR) - B16A2
- 1999-2000 Honda Civic Si - B16A2
- 1997-2001 Honda CR-V - B20B, B20Z
Compatible with all Honda B-series engine codes: B16A, B16A2, B16B, B18B1, B18C, B18C1, B18C5, B20B, B20Z. If your Honda or Acura runs a B-series engine and you're not sure which code you have, check the emissions sticker under the hood or the 10th digit of your VIN for model year confirmation.
Note: Not compatible with D-series, H-series, or K-series Honda engines. This gasket is specific to the B-series oil pan bolt pattern and flange dimensions.
-
Specification Detail OEM Part Number 11251-P30-004 Brand / Origin Genuine Honda OEM Compatible Engine Codes B16A, B16A2, B16B, B18B1, B18C, B18C1, B18C5, B20B, B20Z Fitment Years 1988-2001 (Honda and Acura B-series applications) Gasket Type Oil Pan Gasket (lower block sealing surface) Quantity Included 1x Gasket Sealant Required No - installs dry per Honda specification Recommended Torque 8-12 Nm (6-9 ft-lb) - verify with your vehicle service manual OEM Diagram Reference Honda B-Series Engine Lubrication System Supersedes / Cross-Reference Verify with Honda parts catalog for supersession history -
- 1x Genuine Honda OEM Oil Pan Gasket - Part #11251-P30-004
This listing is for the oil pan gasket only. Oil pan drain bolt, crush washer, and engine oil are sold separately. If you're doing a full oil pan service, see our related B-series components for oil pan drain bolts and compatible oil pan assemblies.
