Insane Shafts 36mm Swap Wheel Hubs for Civic & Integra

Insane Shafts 36mm Swap Wheel Hubs for Honda Civic and Acura Integra

If you are stepping into real power territory, stock hubs are not the place to gamble. These Insane Shafts 36mm Swap Wheel Hubs are built for people like us who actually lean on their cars. Big swaps, sticky tires, hard launches, and long pulls. If that sounds familiar, you are exactly who these are for.

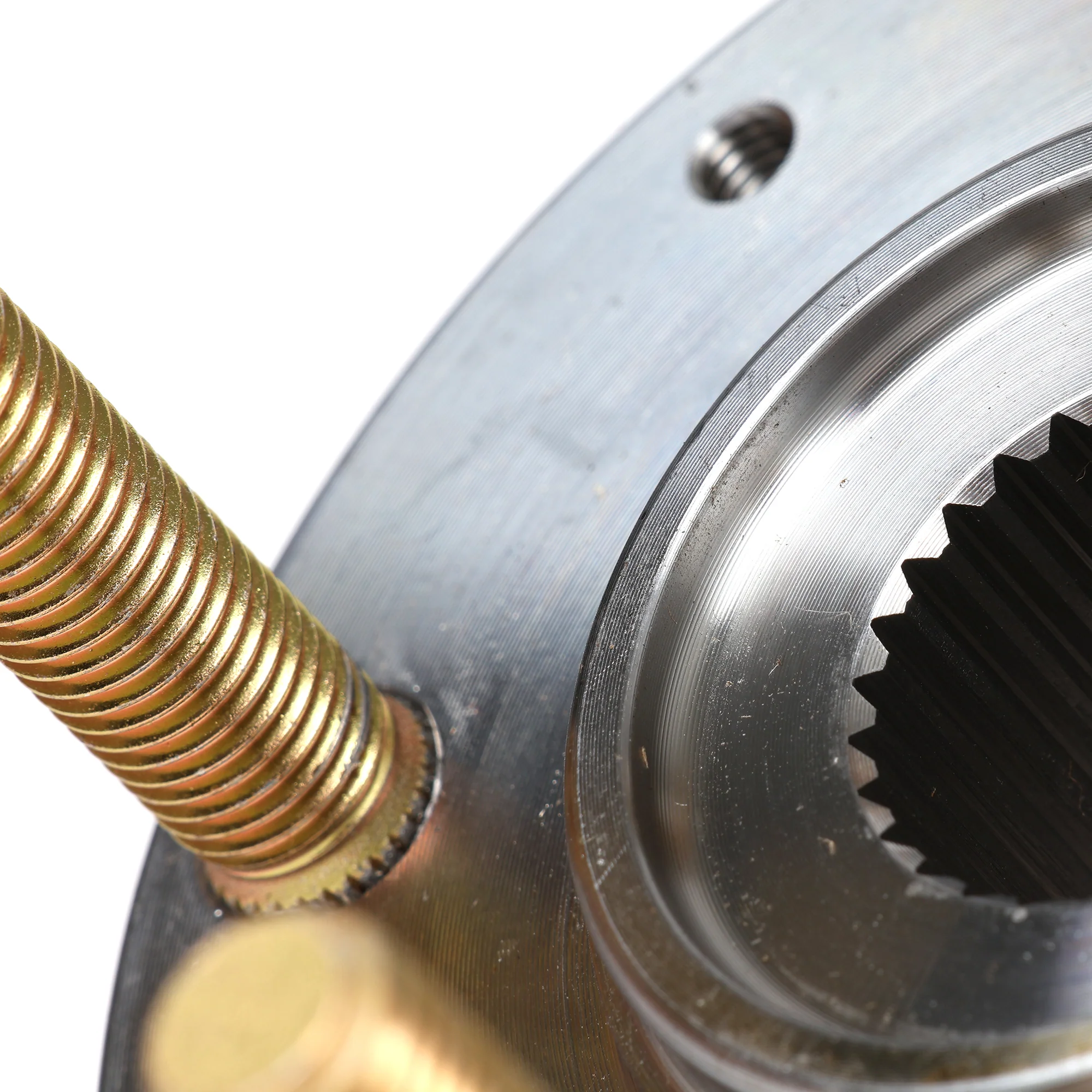

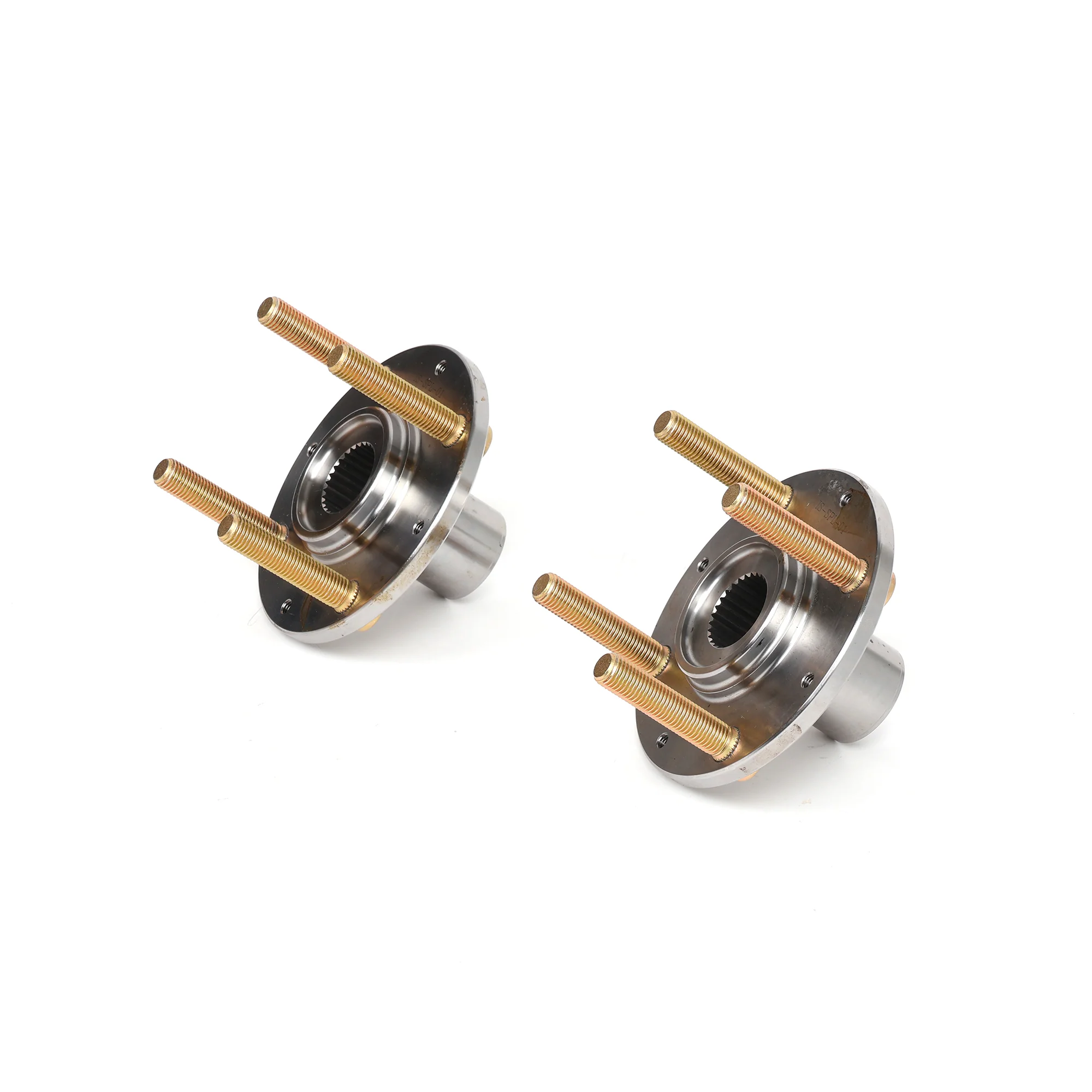

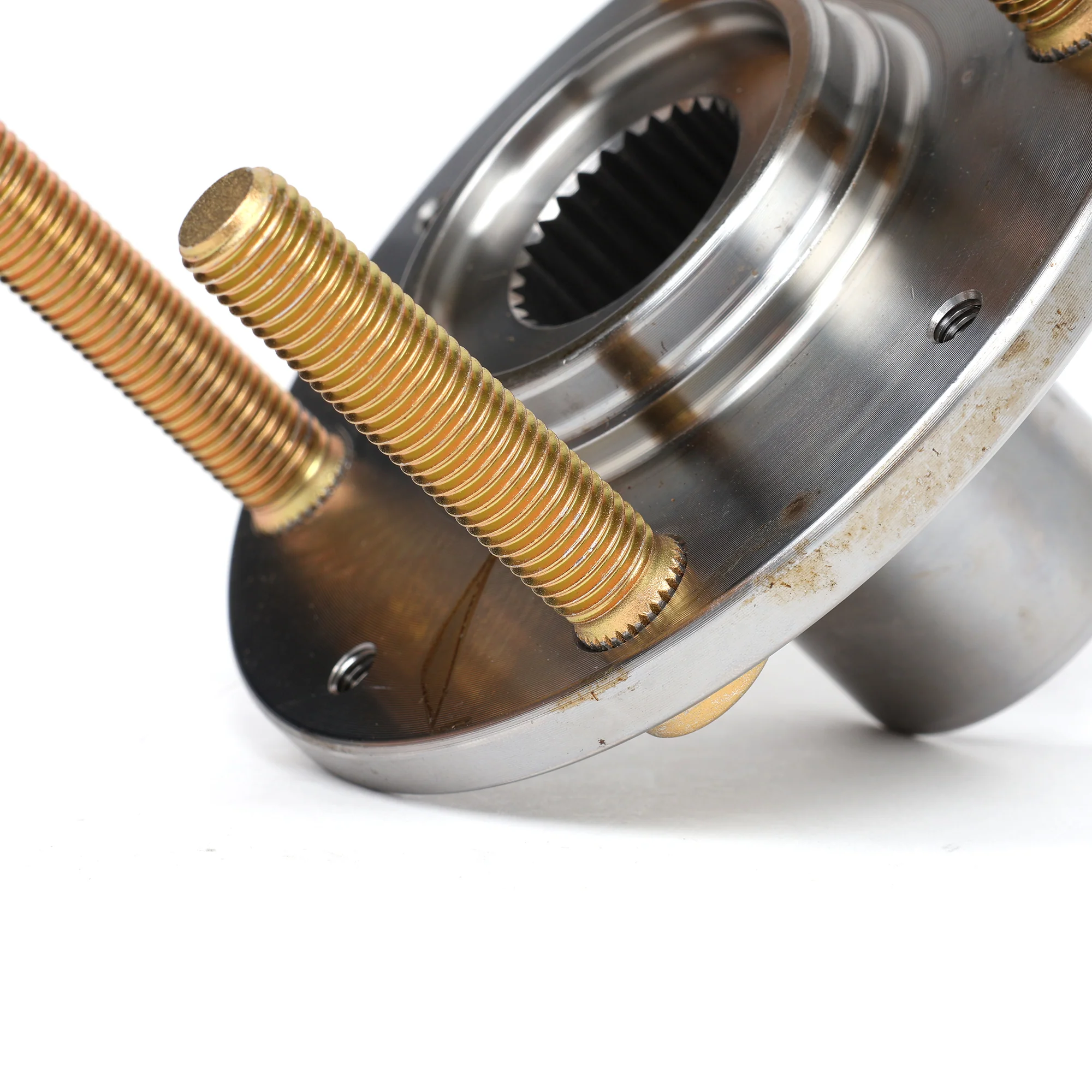

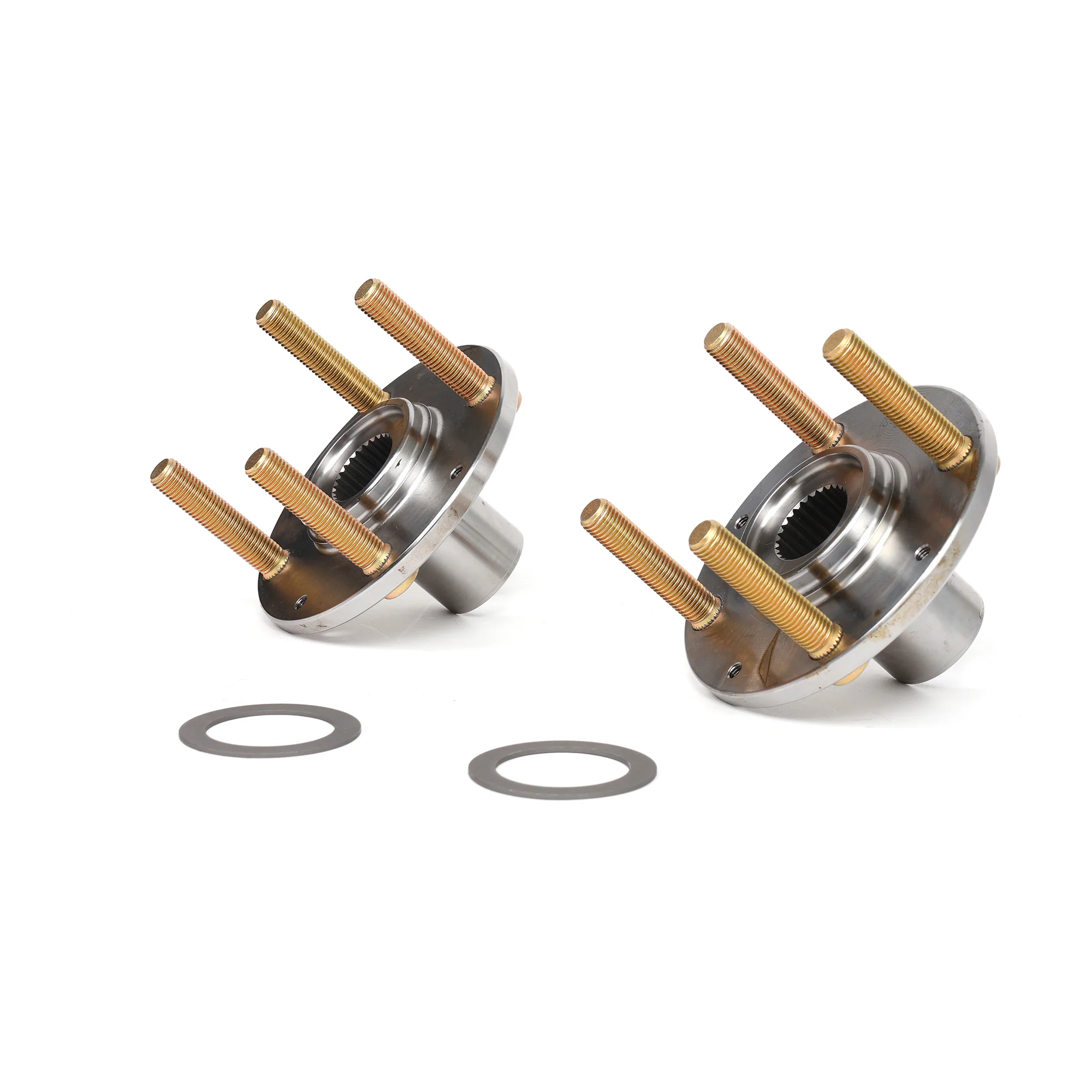

Each hub is CNC machined from high-strength chromoly steel, not cast, not questionable, and definitely not stock-level. They are designed to work with OEM-style wheel bearings and brake rotors, so installation stays straightforward instead of turning into a custom fabrication project. Bolt them in, set your bearings, and get back to building the car you actually want to drive.

Insane Shafts includes ARP extended wheel studs because anything making real torque needs proper hardware. These hubs are meant for high-horsepower Hondas and Acuras that see street abuse, track time, or both. If you are tired of worrying about wheel hubs being the weak link, this is the fix.

Key Features

• 36mm swap-style wheel hubs designed for high-power builds
• CNC machined from high-strength chromoly steel
• Direct fit with OEM-style wheel bearings and brake rotors
• ARP extended wheel studs for added strength and safety
• Built to handle high torque, hard launches, and track use
• Sold as a complete pair

Available Variants and Specifications

IS-SPL-01 (38mm Bearing)

• Application: 1992–2000 Honda Civic
• Wheel Bolt Pattern: 4x100
• Wheel Bearing Inner Diameter: 38mm
• Disc Brake Size: 240mm (9.456 inches)
• Wheel Stud Length: 2.50 inches
• Wheel Stud Thread: M12 x 1.5
• Replaces OEM Part Number: 44600-S04-980

IS-SPL-02 (43mm Bearing)

• Application: 1992–2000 Honda Civic and 1994–2001 Acura Integra
• Wheel Bolt Pattern: 4x100
• Wheel Bearing Inner Diameter: 43mm
• Disc Brake Size: 262mm (10.3228 inches)
• Wheel Stud Length: 2.50 inches
• Wheel Stud Thread: M12 x 1.5
• Replaces OEM Part Number: 44600-S04-A00

Important Notes

• Wheel bearings and brake rotors are not included
• Designed for serious engine swaps and high-horsepower applications

If you are putting real power through a Civic or Integra and want hubs that will not flinch when you drop the clutch, these Insane Shafts 36mm Swap Wheel Hubs are exactly what you should be running. Install them once, trust them, and focus on driving instead of worrying about parts breaking.
