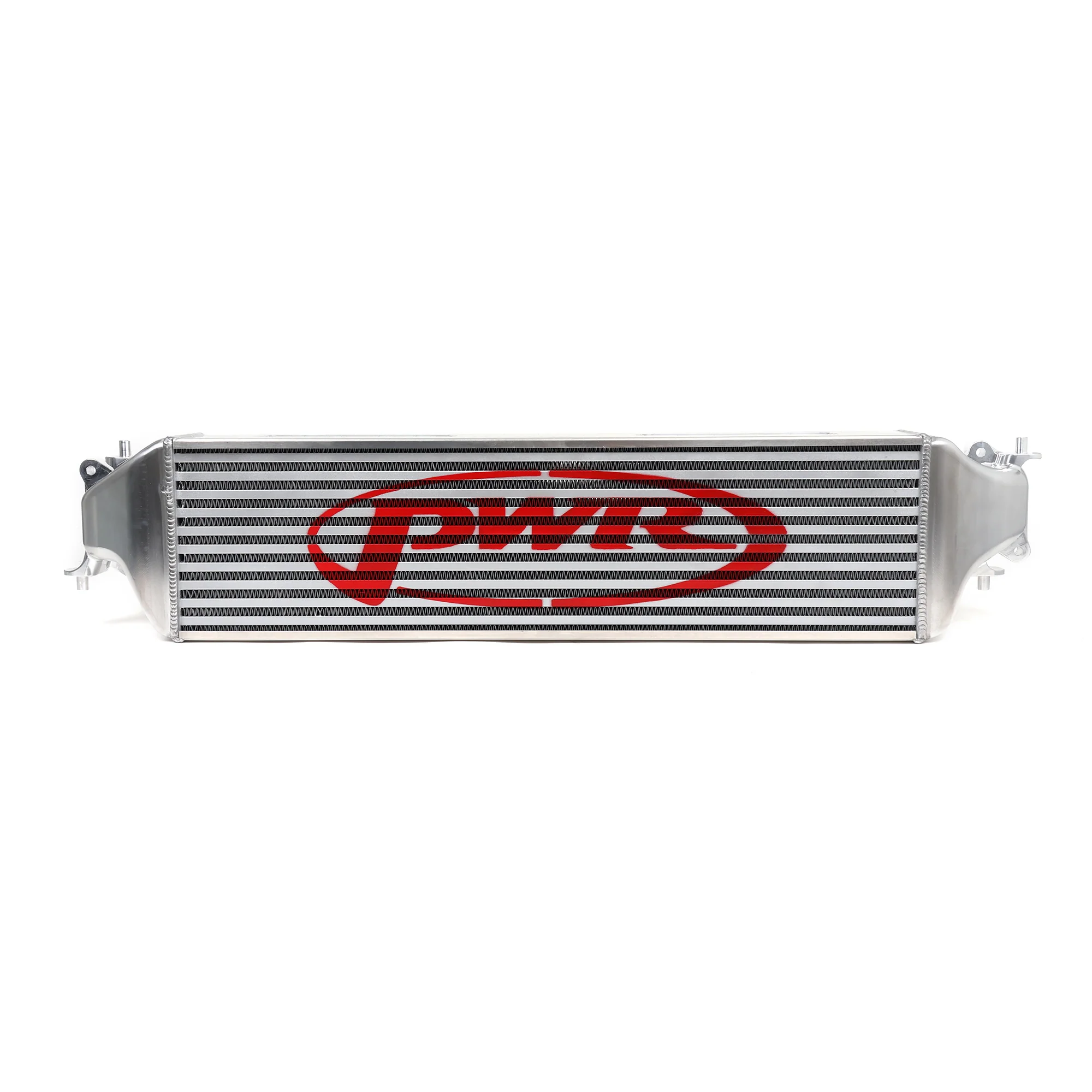

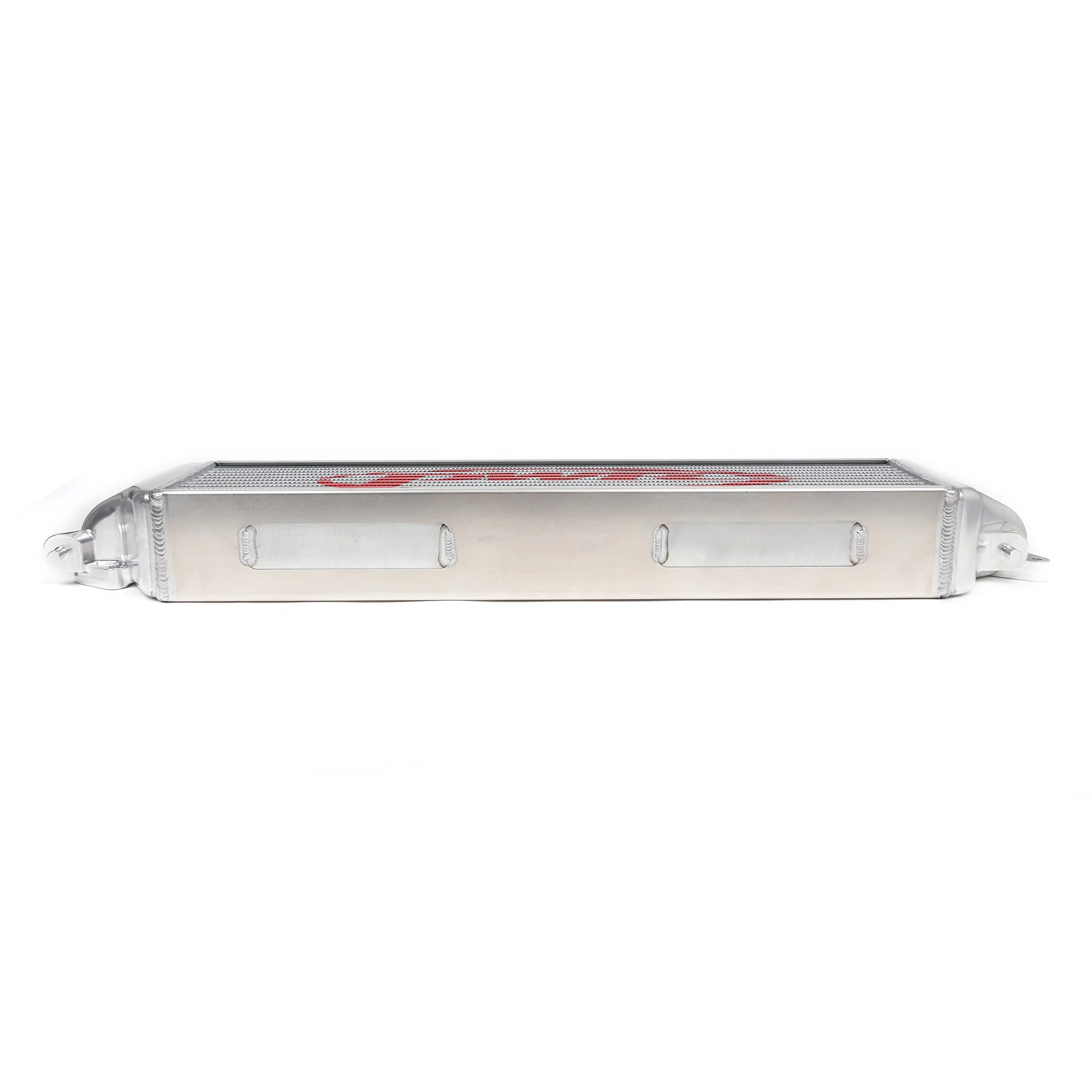

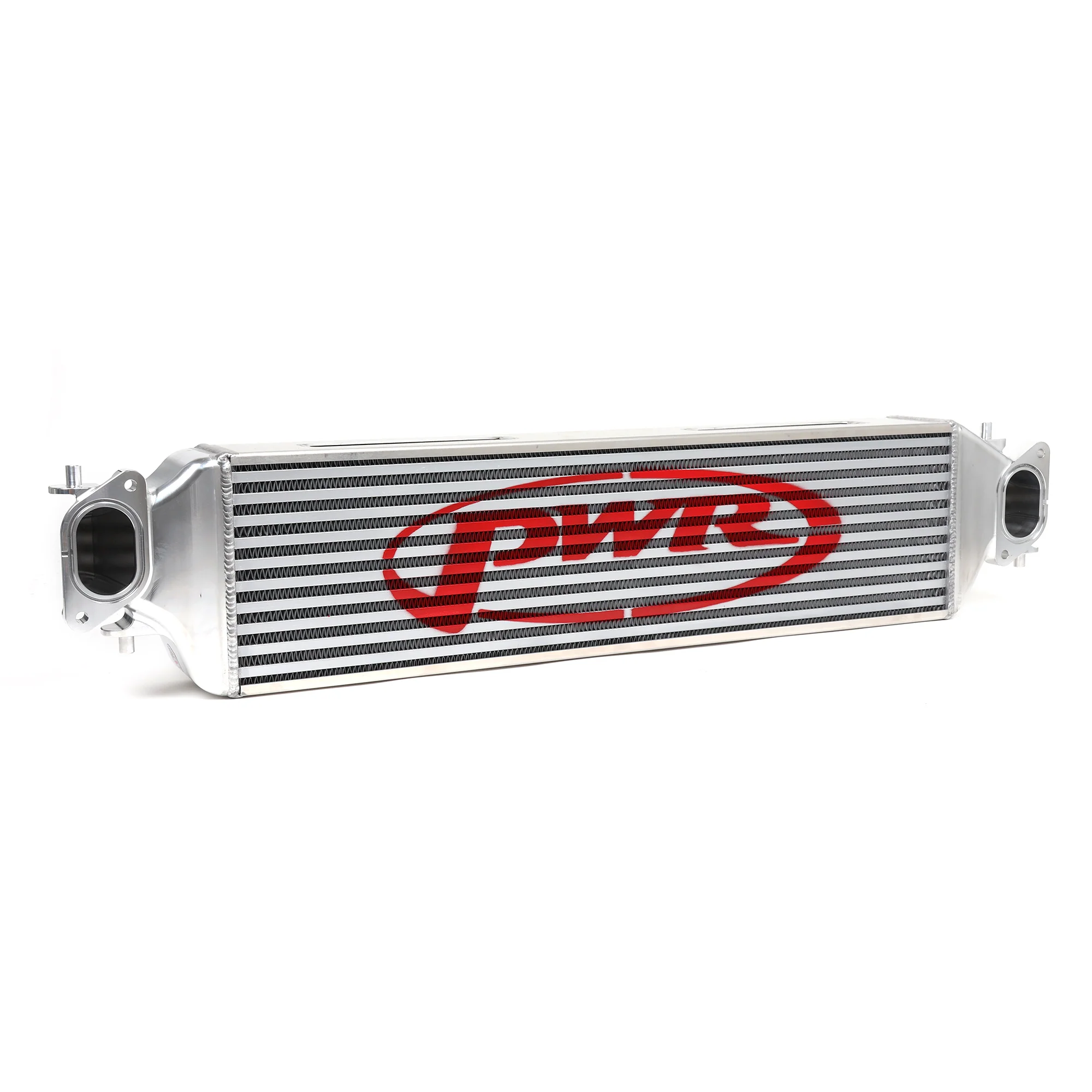

PWR 87mm Front Mount Intercooler – 2017–2021 Honda Civic Type R (FK8)

If you’re running your FK8 Civic Type R harder than stock, the factory intercooler will struggle fast. That’s where the PWR 87mm Front Mount Intercooler comes in. Built to handle serious boost and long track sessions, this intercooler keeps intake temperatures in check so your engine stays sharp and consistent lap after lap.

The 87mm thick core is race-inspired, using louvered R-fins and extruded tube construction to maximize airflow and heat rejection. Billet aluminum end tanks keep the flow smooth and strong while resisting the abuse of track use. Installation is a breeze because it bolts right into the stock mounting points and works with your OEM piping and air ducts—no cutting, no guesswork, no headaches.

Heat soak is gone, power stays consistent, and your Civic doesn’t have to pull timing when the boost climbs. Whether you’re daily driving, canyon carving, or tracking your FK8, this PWR front mount intercooler is a serious upgrade that just works.

Key Features

• Front mount intercooler for 2017–2021 Honda Civic Type R (FK8)
• 87mm thick core for improved cooling and reduced heat soak
• Race-inspired louvered R-fin and extruded tube design for maximum airflow

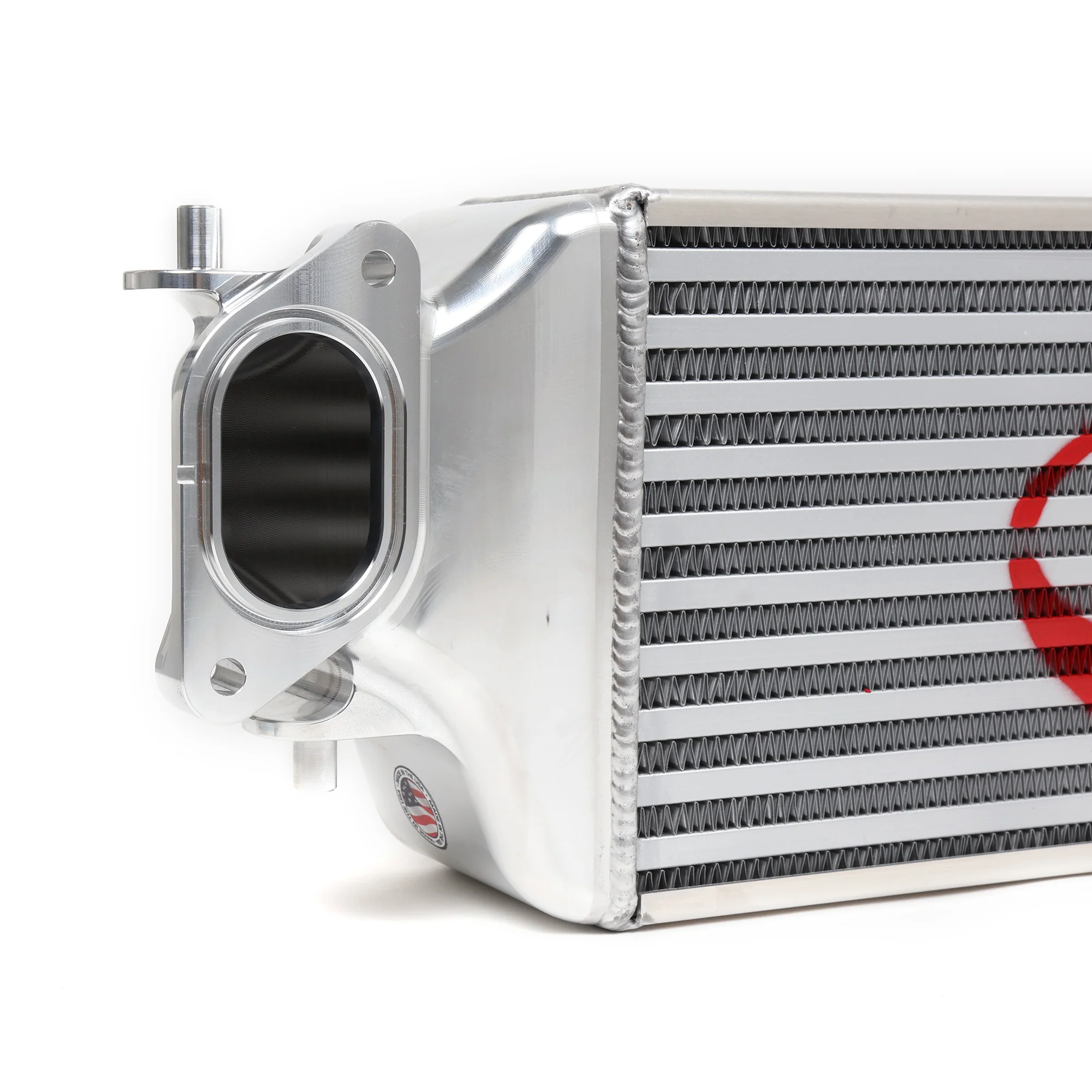

• Billet aluminum end tanks for strength and smooth flow
• Direct-fit to factory mounting points using OEM piping
• Handcrafted and TIG-welded in the USA
• Improves power consistency, reliability, and engine longevity under high boost

Specifications

• Core Height / Overall Height: 7.05 in / 7.24 in
• Core Width / Overall Width: 26.18 in / 33.46 in
• Core Depth / Overall Depth: 3.43 in / 3.82 in
• Tube Size: 87mm
• Radiator Style: Crossflow
• Number of Passes: Single
• Inlet Location: Center Right (OEM size)
• Outlet Location: Center (OEM size)
